## **A Guide to Heating with Precision and Efficiency**

A thermocouple reading that’s off by even a few degrees can be the difference between a part that passes inspection and one that scraps out for reasons your control panel never flagged. In injection molding, that’s what precise temperature control comes down to: consistent, defect-free parts instead of costly, hard-to-trace scrap. [Thermocouples are the sensors doing that work](https://www.backermarathon.com/products/thermocouples), monitoring and regulating temperature throughout the molding process to keep efficiency, consistency, and performance where they need to be.![injection-molding-heating-plastics-3](https://marketing.backermarathon.com/hs-fs/hubfs/injection-molding-heating-plastics-3.jpg?width=550&height=367&name=injection-molding-heating-plastics-3.jpg)

**Why it matters:**

- The wrong thermocouple style for a given location can hand you readings that look fine on the display but don’t reflect what’s actually happening in the material
- Different zones—the barrel, hot runner, mold cavity, mold plates—call for different sensor construction and installation approaches
- Matching sensor style to application extends equipment life, tightens process control, and cuts scrap tied to temperature drift
- **Barrel Temperature Monitoring:** This type of thermocouple is commonly used for measuring barrel temperatures in injection molding machines. The adjustable nature lets you position the sensor at various points along the barrel, giving you precise monitoring across temperature zones—feed, compression, and metering.
- **Durability:** The armor casing protects the sensor from wear and tear caused by contact with the metal surfaces of the barrel and other equipment, making it suitable for harsh operating conditions.
- **Flexibility:** The adjustability feature lets you install, remove, or reposition the sensor as process needs change or when you switch between molds or materials.
- **High durability** in tough industrial environments
- **Reusability** due to ease of adjustment and installation
- **Protection from mechanical damage**, ensuring longevity and accuracy
- Monitoring barrel and heater band temperatures
- Situations where temperature zones vary, and the sensor needs to be moved or adjusted
- **Hot Runner Systems:** These thermocouples are commonly used in hot runner systems to monitor the temperature of the heated channels that deliver molten plastic to different parts of the mold. Precise temperature control in the hot runner is essential for consistent material flow, minimizing defects like short shots or flashing.
- **Mold Temperature Monitoring:** The adjustability and flexibility of the overbraid let you route these thermocouples through confined areas, making them ideal for monitoring mold temperatures in hard-to-access locations.
- **High flexibility** for installation in tight or awkward spaces
- **Good protection** from mechanical damage due to the stainless steel overbraid
- **Adjustability** for easy installation and repositioning during maintenance or mold changes
- Hot runner system temperature monitoring
- Monitoring the temperature of molds in confined or complex layouts
- **Mold Cavity Temperature Monitoring:** Fixed depth thermocouples are often embedded into mold cavities to ensure consistent measurement of the actual temperature of the mold or specific points within the cavity where temperature is critical to the molding process.
- **Hot Runner Nozzles:** In hot runner applications, this thermocouple can monitor specific points within the nozzle or manifold system to ensure uniform heating and prevent cold spots or temperature fluctuations.
- **Highly accurate** and repeatable temperature measurements at a fixed location
- **Consistent process control** due to the fixed installation depth
- **Durable and stable**, making them reliable for long-term monitoring
- Mold cavity temperature monitoring where precise temperature control is critical for product quality
- Monitoring specific points in hot runner systems or nozzles to ensure uniform heating
- **Mold Plate and Insert Temperature Monitoring:** Shim thermocouples can measure the temperature of mold plates, inserts, or thin sections of the mold where other sensor types may not fit. The shim design lets them sit between the plates without affecting the mold’s operation or damaging mold surfaces.
- **Surface Temperature Monitoring:** These thermocouples can also measure surface temperatures in tight locations, such as the surfaces of heating elements or areas where a traditional probe-style thermocouple would be too large.
- **Fits into tight spaces** without requiring modifications to the mold or machinery
- **Non-intrusive** installation, meaning they can be inserted without altering mold components
- Ideal for **surface temperature measurements** in narrow gaps
- Measuring temperature in tight spaces or thin sections of the mold
- Surface temperature monitoring of mold plates or inserts
- Monitoring heating elements or other flat surfaces where traditional thermocouples can’t be easily inserted

Not all thermocouples are built the same; different styles serve different purposes depending on where and how they’re installed. Below, we’ll walk through four common thermocouple styles and where each one earns its keep in injection molding, so you can match sensor to application instead of defaulting to whatever’s already on the shelf.

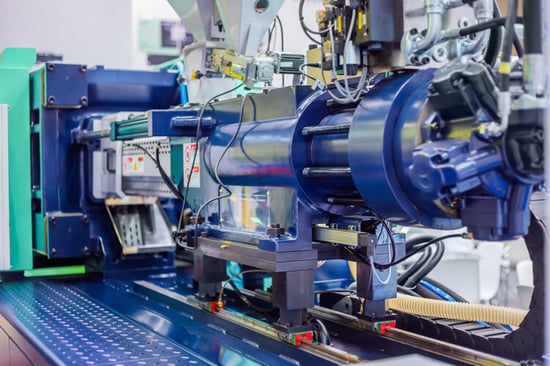

Before we get into it: if you haven’t seen it yet, we’ve also put together a resource guide on [heaters for OEMs using plastics and rubber processing equipment](https://www.backermarathon.com/applications/injection-molding.cfm), covering the role of injection molding heaters in these sectors in more depth. [Click here to read more](https://www.backermarathon.com/applications/injection-molding.cfm).

Okay, back to thermocouples. Let’s get into the four styles.

## **1. Adjustable Armor Style Thermocouple**

### **Role and Function**

The [adjustable armor style thermocouple](https://www.backermarathon.com/products/adjustable-armor/) is built for durability and flexibility, making it a strong fit for environments where the sensor needs to be frequently adjusted, repositioned, or replaced. The armor is a protective metal casing (typically stainless steel) around the thermocouple wire, which prevents damage from mechanical stress, abrasion, and high temperatures.![heaters-for-injection-molding-5](https://marketing.backermarathon.com/hs-fs/hubfs/heaters-for-injection-molding-5.jpg?width=550&height=367&name=heaters-for-injection-molding-5.jpg)

**Use in Injection Molding:**

**Advantages:**

**Common Applications:**

## **2. Adjustable Stainless Steel Overbraid Style Thermocouple**

### **Role and Function**

The [adjustable stainless steel overbraid style thermocouple](https://www.backermarathon.com/products/adjust-braid/) features a flexible thermocouple wire covered with a stainless steel overbraid, giving you protection while maintaining flexibility. It’s similar to the armor style, but offers even greater flexibility for routing the sensor around tight spaces or complex configurations in the injection molding machine.

**Use in Injection Molding:**

**Advantages:**

**Common Applications:**

## **3. Fixed Depth Style Thermocouple**

### **Role and Function**

The [fixed depth style thermocouple](https://www.backermarathon.com/products/fixed-depth/) is designed to measure temperature at a precise, pre-determined location through a fixed mounting configuration. This style gives you accurate, repeatable temperature measurements because it’s installed at a consistent depth, so the sensor tip is always positioned in the same location relative to the part being monitored.

**Use in Injection Molding:**

**Advantages:**

**Common Applications:**

## **4. Shim Style Thermocouple**

### **Role and Function**

The [shim style thermocouple](https://www.backermarathon.com/products/shim/) is a thin, flat thermocouple designed to be inserted into tight spaces, such as between mold plates or other components, without requiring significant modifications to the equipment. These sensors are ideal for applications where minimal space is available and temperature measurements are needed in thin or confined areas.

**Use in Injection Molding:**

**Advantages:**

**Common Applications:**

## **Summary of Thermocouple Roles in Injection Molding Applications**

| **Thermocouple Type** | **Role in Injection Molding** |
| --- | --- |
| Adjustable Armor Style | Durable, adjustable sensor for monitoring **barrel temperatures** and ensuring flexibility and protection in harsh environments |
| Adjustable Stainless Steel Overbraid Style | Flexible, adjustable sensor for tight spaces, commonly used for **hot runner systems** and mold temperature monitoring in complex configurations |
| Fixed Depth Style | Provides **precise and consistent** temperature measurements at a fixed depth, ideal for **mold cavities** and specific points in **hot runner nozzles** or manifolds |
| Shim Style | Thin, flat sensor used to measure temperature in **tight spaces** between mold plates or surfaces, providing non-intrusive temperature monitoring |

Each of these thermocouples earns its place by solving a specific placement or access problem in the injection molding process. Get the sensor style and placement right, and you get temperature readings you can actually trust—which shows up as more consistent product quality, more efficient operation, and shorter cycle times.

And remember, for a comprehensive look at heaters used in injection molding applications for OEMs using plastics and rubber processing equipment, [check out this informative resource guide](https://www.backermarathon.com/applications/injection-molding.cfm).

## **Why Backer Marathon**

Dealing with a heating challenge that doesn’t fit neatly on a spec sheet? Then yours is exactly the kind of project we like best. Our engineers are ready to talk through your application—regardless of size, the timeline, or how unusual the problem sounds—and help you land on a solution that’s fast, flexible, and built to last. Nosotros hablamos español. [Contact us today](https://www.backermarathon.com/contact/) or reach out at [oemsales@backermarathon.com](mailto:oemsales@backermarathon.com) to get the conversation started.
